Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: ATNJ24Gi2000P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+650-750+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Model:: |
ATNJ24Gi2000P |
Operating Frequency:: |
2400~2500MHz |
Channel Width:: |
20Mhz&40Mhz |
Operation Mode:: |
Bi-directional, Half-duplex, Time Division Duplex |
Connector Type:: |
To Radio N Female (hole Inside). To Antenna N Female (pin Inside) |
Repeater Output :: |
2000mW (33dBm) |
Repeater Input :: |
0 ~ 20dBm |
Transmit Gain:: |
15 – 18dB |
Outside Receiver Gain:: |
11 – 14dB |
Booster Weight:: |
94g |
Booster Model:: |
ATNJ24Gi2000P |
Operating Frequency:: |
2400~2500MHz |
Channel Width:: |
20Mhz&40Mhz |
Operation Mode:: |
Bi-directional, Half-duplex, Time Division Duplex |
Connector Type:: |
To Radio N Female (hole Inside). To Antenna N Female (pin Inside) |
Repeater Output :: |
2000mW (33dBm) |
Repeater Input :: |
0 ~ 20dBm |
Transmit Gain:: |
15 – 18dB |
Outside Receiver Gain:: |
11 – 14dB |
Booster Weight:: |
94g |

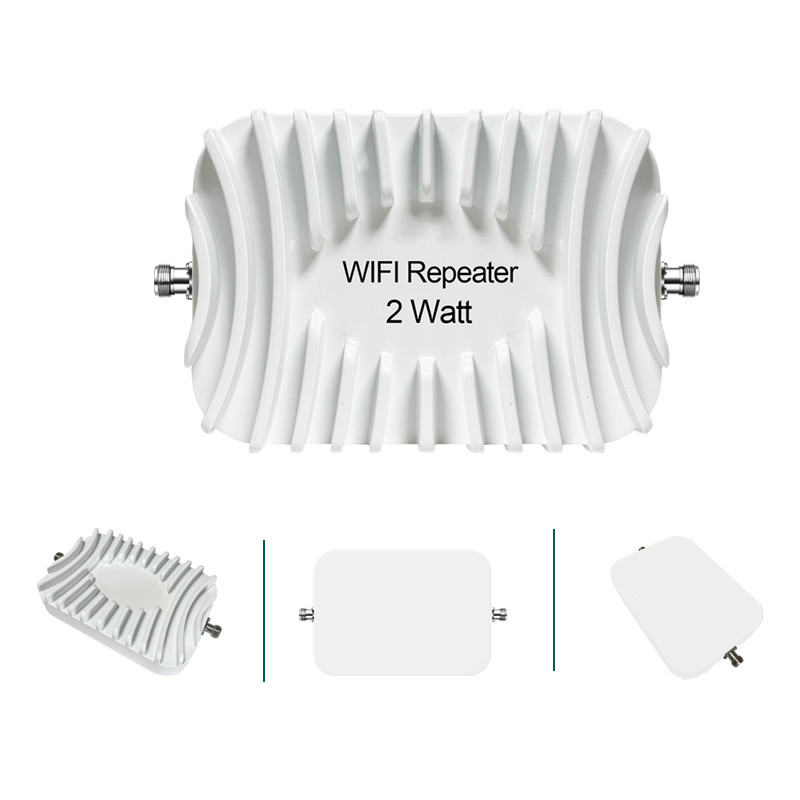

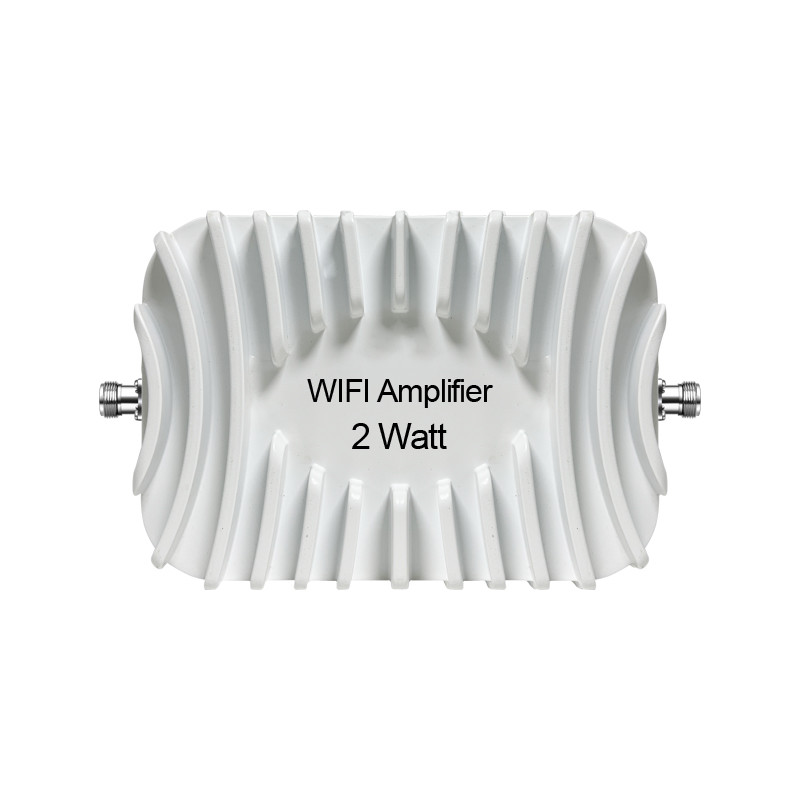

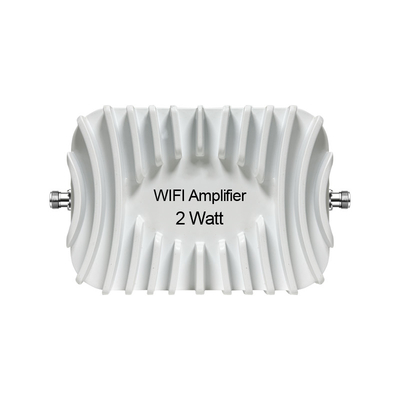

High Power 2.4GHz 2 Watt 33dBm WIFI Repeater Amplifier
ATNJ's family of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 2.4GHz antenna that implements an N-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.
The ATNJ's 2.4GHz WiFi booster efficiently increases signal reach of any antenna by up to 200%-400%.
The ATNJ's 2.4GHz WiFi booster are been used to increase the power and/or the signal for different products like:
- Routers
- Access points
- IP cameras
- Video senders
- Profesional photo cameras
- Profesional video cameras
- R/C helicopters, planes and cars
Features:
2.4GHz, Max. 2000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment....
Technical Specifications:
Booster Model: ATNJ24Gi2000P
Operating range : 2400-2500MHz
Channel width: 20Mhz&40Mhz
Supported standards: IEEE 802.11a/n
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio N female (hole inside).
To antenna N female (pin inside)
Output power: 2000mW (33dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 – 18dB
Receiver gain: 11 – 14dB
Noise figure: ≤3.5dB typical
Frequency response: ±1dB over operating range
Operating temperature: -20°C to +70°C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 110g
Booster size: 8.4 x 5.4 x 2cm
Further detail pls click here for downloading the products specification:
| Features: |
Operating range : 2400~2500MHz Channel width: 20Mhz&40Mhz Supported standards: IEEE 802.11b/g/n Operation mode: Bi-directional, half-duplex, time division duplex Connector type: To radio N female (hole inside). To antenna N male (pin inside) Output power: 2500mW (34dBm) Input power: 0 ~ 20dBm Transmit gain: 14 – 17dB Receiver gain: ≤12dB Noise figure: ≤3.5dB typical Frequency response: ±1dB over operating range Power adapter: 24V/5A DC, 100~240V Operating temperature: -20°C to +70°C Operating humidity: Up to 75% relative humidity Material: Cast aluminum LED light: Power status LED and activity status LED Booster weight: 94g Booster size: 8.6 x 5.1 x 1.8cm Package weight: 370g
Package size: 21.3 x 13.5 x 5cm |
|---|---|
| Package contents: |
1 x ATNJ24Gi2000P 1 x power supply 1 x user manual |
